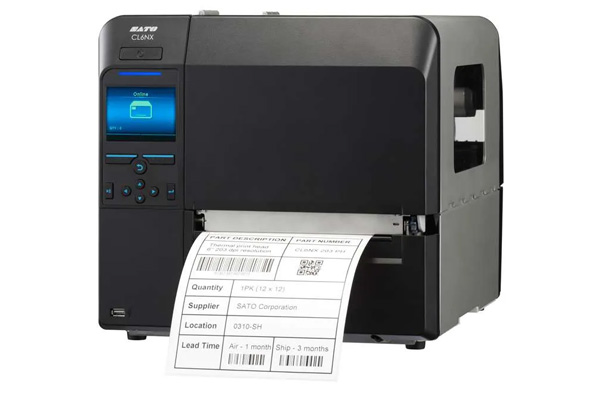

SATO CL6NX Plus 6-Inch Wide-Format Industrial Thermal Printer

SATO CL6NX Plus: Wide-Format Industrial Thermal Printing

Experience the next generation of wide-format industrial printing with the SATO CL6NX Plus. Designed for heavy-duty performance and unparalleled ease of use, the CL6NX sets a new standard for 6-inch thermal printers. Built with a rugged die-cast aluminum frame, it is engineered to thrive in the most demanding manufacturing, logistics, and warehousing environments, with SATO's "Universal" design providing multi-language support and an intuitive 3.5-inch full-color display with built-in video tutorials.

6.58-Inch Print Width for Wide-Format Industrial Applications

With a maximum print width of 6.58 inches (167.5mm) and media acceptance up to 7.0 inches (177mm), the CL6NX Plus handles the label formats that standard 4-inch printers simply cannot accommodate. Applications well-suited to the CL6NX include:

• Pallet compliance labels — GS1-128 standard pallet labels require a minimum 4-inch × 6-inch format; the CL6NX handles the full label width with precision
• Large shipping and carton labels — carrier compliance labels for UPS, FedEx, and freight carriers that exceed 4-inch width
• Manufacturing traveler labels — wide-format work order and routing labels for shop floor tracking
• Regulatory compliance labels — DOT, OSHA, and GHS chemical hazard labels that require large pictograms and signal word areas

The "Plus" model delivers enhanced print precision and faster speeds compared to the base CL6NX, ensuring that complex 2D barcodes and high-density graphics across the full 6.58-inch print path are rendered with crisp, scan-ready clarity.

Linerless Label Support: Less Waste, Lower Cost-Per-Label

The CL6NX Plus supports linerless label printing — a capability that eliminates the silicone backing liner from the label roll entirely. The environmental and operational advantages are significant:

• 40–50% more labels per roll diameter — without the liner, significantly more labels fit on the same roll OD, reducing roll change frequency
• Zero liner waste disposal — reduces environmental impact and eliminates the cost of liner recycling or landfill disposal
• Lower cost-per-label — material savings on high-volume applications add up substantially over time

Linerless printing is particularly valuable in food service labeling, retail markdown tags, and high-volume logistics environments where sustainability targets and throughput are both priorities.

AEP: Standalone Smart Printing Without a PC

The CL6NX Plus is equipped with SATO AEP (Application Enabled Printing), which runs custom label applications directly on the printer. AEP enables the printer to communicate with scanners, scales, keyboards, and enterprise databases — triggering print jobs based on real-time inputs without a connected PC at the print station. This simplifies workspace infrastructure, reduces hardware costs, and enables flexible deployment across floor locations that lack permanent workstations.

Universal Connectivity, RFID & 600m Ribbon Rolls

The CL6NX Plus includes the same comprehensive connectivity as the CL4NX: USB 2.0, Ethernet (IPv4/IPv6), RS-232C Serial, IEEE1284 Parallel, and Bluetooth as standard, with optional Wi-Fi (802.11 a/b/g/n). Field-upgradeable UHF RFID encoding can be added post-purchase.

For sustained wide-format production, the CL6NX supports ribbon rolls up to 600m in length at up to 3.15-inch diameter — significantly reducing ribbon change frequency versus shorter rolls. The 8.6-inch OD media roll capacity (on 1.5" or 3" cores) extends production runs and minimizes downtime.
